Unfinished, yellow zinc plated steel nipple. Fully threaded 1/4IP.
1/4 x .75 - 3/4" Price $1.60 ea.
1/4 x 1.00 - 1" Price $1.60 ea.
1/4 x 1.50 - 1 1/2" Price $1.70 ea.
1/4 x 1.75 - 1 3/4" Price $1.85 ea
1/4 x 2.00 - 2" Price $1.85 ea.
1/4 x 2.25 - 2 1/4" Price $2.00 ea.
1/4 x 2.50 - 2 1/2" Price $2.00 ea.
1/4 x 3.00 - 3" Price $3.50 ea.
1/4 x 3.50 - 3 1/2" Price $3.75 ea.
1/4 x 3.75 - 3 3/4" Price $3.75 ea.
1/4 x 4.00 - 4" Price $3.75 ea.
1/4 x 5.00 - 5" Price $4.25 ea.
1/4 x 6.00 - 6" Price $4.25 ea.
A306 - 36" Price $10 50 ea.
Yellow zinc plated steel nipple. Fully threaded 3/8 IP.
A1515 - 1" Price $1.55 ea.
A1523 - 2" Price $2.35 ea.
A1527 - 3" Price $3.75 ea.
A308 - 36" Price $30.00 ea.
Unfinished solid brass pipe with 1/2" of 1/8 IP threads at each end.
A512 - 2" Price $4.50 ea.
A514 - 3" Price $4.50 ea.
A516 - 4" Price $4.75 ea.
A517 - 5" Price $5.75 ea.
A518 - 6" Price $6.00 ea.
A520 - 8" Price $6.75 ea.
A522 - 10" Price $7.00 ea.
A524 - 12" Price $8.50 ea.
A526 - 14" Price $11.50 ea.
A528 - 16" Price $13.50 ea.
A530 - 18" Price $13.50 ea.
A536 - 24" Price $18.00 ea.
Brass plated pipe with 3/4" of 1/8 IP threads at each end.
1/8-5B - 5" Price $5.25 ea.
1/8-6B - 6" Price $5.25 ea.
1/8-7B - 7" Price $5.50 ea.
1/8-8B - 8" Price $5.50 ea.
1/8-9B - 9" Price $5.50 ea.
1/8-10B - 10" Price $5.50 ea.
1/8-11B - 11" Price $6.00 ea.
1/8-12B - 12" Price $7.50 ea.
1/8-13B - 13" Price $6.00 ea.
1/8-14B - 14" Price $6.50 ea.
1/8-15B - 15" Price $6.50 ea.
1/8-16B - 16" Price $7.00 ea.
1/8-17B - 17'' Price $9.90 ea.
1/8-18b - 18" Price $10.50 ea.
1/8-20B - 20" Price $11.00 ea.
Nickel pipe with 1/2" of 1/8 IP threads at each end.
05104 - 4" Price $5.50 ea.
05105 - 5" Price $7.00 ea.
05106 - 6" Price $7.00 ea.
05107 - 7" Price $7.00 ea.
05108 - 8" Price $8.75 ea.
05109 - 9" Price $10.00 ea.
05110 - 10" Price $11.00 ea.
05111 - 11" Price $12.50 ea.
05112 - 12" Price $12.50 ea.
05113 - 13" Price $12.50 ea.
05114 - 14" Price $13.00 ea.
05115 - 15" Price $13.00 ea.
05116 - 16" Price $13.00 ea.
05117 - 17" Price $13.50 ea.
05118 - 18" Price $14.00 ea.
05119 - 19" Price $14.50 ea.
05120 - 20" Price $16.50 ea.
05122 - 22" Price $17.50 ea.
05123 - 23" Price $21.50 ea.
05124 - 24" Price $25.00 ea.
Unfinished steel pipe with 1" of thread at each end.
1/8 IPS
A412 - 5" Price $2.00 ea.
A414 - 5 1/2" Price $2.00 ea.
A416 - 6" Price $2.00 ea.
A418 - 6 1/2" Price $2.00 ea.
A420 - 7" Price $2.25 ea.
A422 - 7 1/2" Price $2.25 ea.
A424 - 8" Price $2.25 ea.
A426 - 8 1/2" Price $2.25 ea.
A428 - 9" Price $2.50 ea.
A430 - 9 1/2" Price $2.50 ea.
A432 - 10 " Price $2.50 ea.
A434 - 10 1/2" Price $2.50 ea.
A436 - 11" Price $3.00 ea.
A438 - 11 1/2" Price $3.00 ea.
A440 - 12" Price $3.00 ea.
A442 - 12 1/2" Price $3.00 ea.
A444 - 13" Price $3.25 ea.
A446 - 13 1/2" Price $3.25 ea.
A448 - 14" Price $3.25 ea.
A450 - 14 1/2" Price $3.25 ea.
A452 - 15" Price $3.50 ea.
A454 - 15 1/2" Price $3.50 ea.
A456 - 16" Price $3.50 ea.
A458 - 16 1/2" Price $3.50 ea.
A460 - 17" Price $3.75 ea.
22335 - 17 1/2" Price $3.75 ea.
A464 - 18" Price $4.00 ea.
A466 - 18 1/2" Price $4.00 ea.
A468 - 19" Price $4.50 ea.
A470 - 19 1/2" Price $4.50 ea.
A472 - 20" Price $4.75 ea.
A476 - 21" Price $4.75 ea.
A480 - 22" Price $5.00 ea.
A488 - 24" Price $5.50 ea.
Unfinished steel pipe with 1" of threads at each end.
1/4 IPS
22384 - 48" Price $13.00 ea.
22385 - 52" Price $14.00 ea.
22386 - 54" Price $15.00 ea.

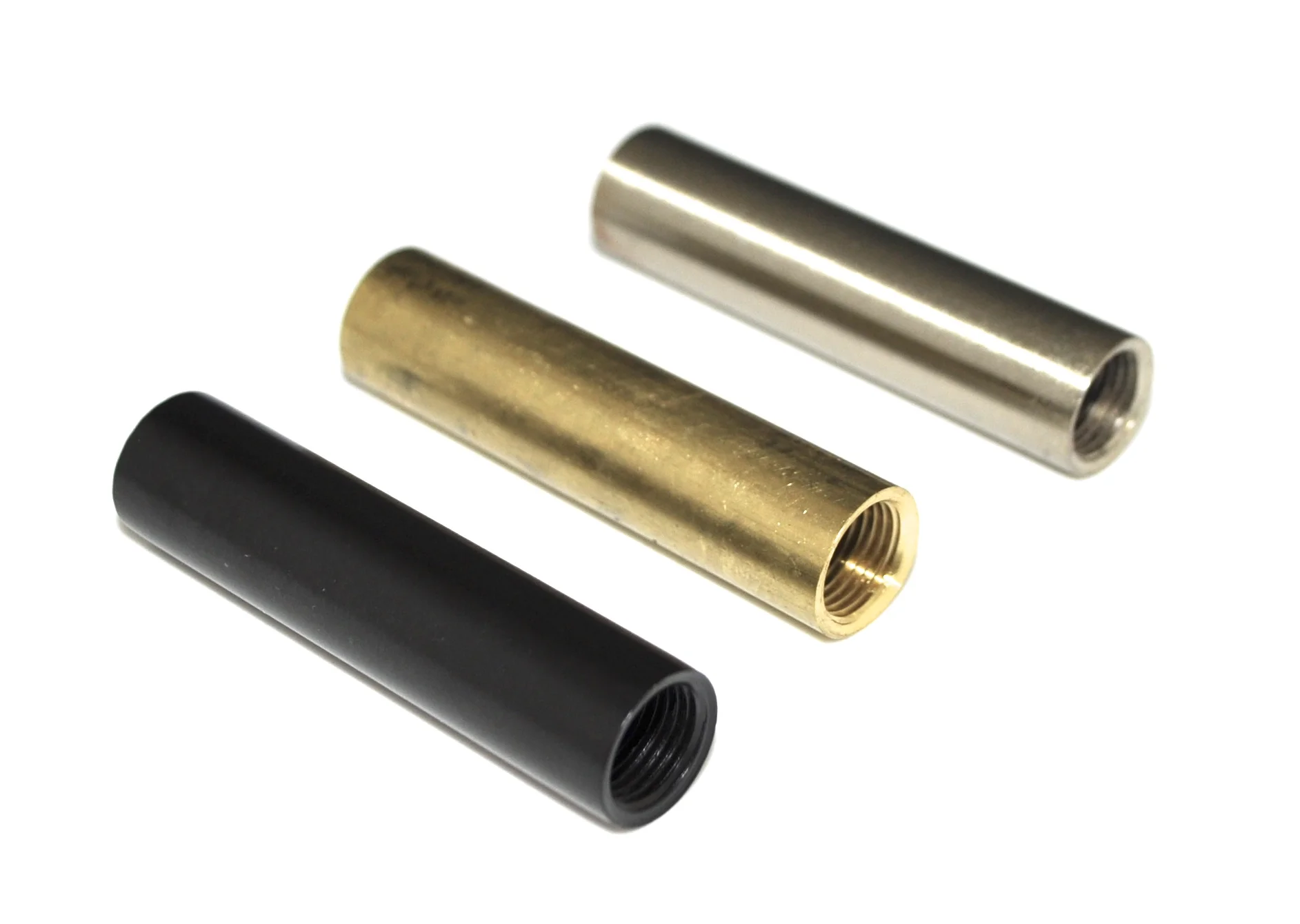

Female threaded pipe. Tapped 1/8 IP. Assorted lengths and finishes.
Black
PIC02BL - 2”
PIC03BL - 3”
PIC04BL - 4”
Satin Nickle
PIC02SN - 2”
PIC03SN - 3”
PIC04SN - 4”
Unfinished Brass
PIC02BR - 2”
PIC03BR - 3”
PIC04BR - 4”
PRICE
2” - $5.50 ea.
3” - $6.75 ea.
4” - $8.50 ea.
Brass plated and lacquered steel rod for assembling adjustable harp. Use in conjunction with #21014U: adjuster coupling.
1/4-27 x 3/4" thread length at one end only.
21015U Price $4.00 ea.
Rubber corrugated adapter. Slips 1/8 IP. Can be used in bottle necks to accept sockets for electrifying bottles of any type.
41070 - 1/2" diameter x 3/4 high
41071 - 3/4" diameter X 3/4" high
41072 - 15/16" Diameter x 3/4" high
Price $1.00 ea.
Beaded round lock nut. 9/16" diameter, 5/32" thickness.
Tap 1/8 IP.
B6 - unfinished brass
B1106 - Nickel plated
Price $0.80 ea.
Solid brass knurled lock nut.
Tap 1/4-27 (finial thread) 9/16" diameter
B14 - brass Price $0.80 ea.
Tap 1/8 IP 3/4" Diameter
B10 - Brass
B11 - Nickel
Price $0.80 ea.
Tap 1/8 IP 1" Diameter
B195 - Brass
NU434-1NP - Nickel
Price $1.50 ea.
Tap 1/4 IP 3/4"Diameter
B12 - Brass
Price $0.80 ea.
Unfinished hex steel nut. 1/8" thick.
430 - 9/16" OD. Tap 1/8 IP.
Price $0.15 ea.
426 - 11/16" OD. Tap 1/4 IP.
Price $0.65 ea.
Unfinished hex steel nut. 1/4" thick.
425 - 9/16" OD. Tap 1/8 IP.
Price $0.25 ea.
7869 - 11/16" OD. Tap 1/4 IP.
Price $1.35 ea.
Unfinished lock washer.
B403 - Slips 1/8 IP
Price $0.10 ea.
B402 - Slips 1/4 IP
Price $0.25 ea.
B406 - Slips 3/8 IP
Price $0.55 ea.
Clear plastic washer. 11/4" outside diameter, 7/8" top seating area, 1/8" thickness. Slips 1/8 IP.
B178 Price $1.25 ea.
Clear plastic washer. 1 1/2" outside diameter, 29/32" inside diameter. 1/16" thickness.
57311 Price $1.25 ea.
White rubber washer. 1/16" thickness. Slips 1/8 IP.
B425 - 3/4"
B426 - 1"
B427 - 1 1/4"
B428 - 1 1/2"
Price $0.40 ea.
Heavy steel washer. 1/16" thickness. Slips 1/8 IP.
B411 - 1 1/2"
Price $0.95 ea.
B414 - 2"
Price $0.95 ea.
B1645 - 2 1/2"
Price $1.25 ea.
B415 - 3"
Price $2.95 ea.
B417 - 4"
Price $2.95 ea.
Heavy steel washer. 1/16" thickness. Slips 1/4 IP.
B1646 - 1"
Price $0.40 ea.
1405 - 1 1/4"
Price $0.40 ea
B1647 - 1 1/2"
Price $0.95 ea.
Steel washer. I/32" thickness. Slips 1/8 IP.
W75 - 3/4" Brass plated
W100 - 1" Brass plated
Price $0.40 ea.
B410 - 1" unfinished steel
Price $0.40 ea.
B1642 - 1 1/4" unfinished steel
Price $0.65 ea.
Heavy steel washer. 1/16" thickness. 1 5/8" center hole. 2 3/4" diameter.
B1650 Price $2.50 ea.
Zinc plated lug for ground wire.
B3729 - slips 1/8 IP. With set screw
B1780 - slips 1/8 IP. Crimps on.
B1785 - slips 1/4 IP. Crimps on.
Price $0.75 ea.
Brass shoulder reducer.
B41 - 1/8M x 8/32F
B42 - 1/8M x 10-24F
Price $1.30 ea.
B40 - 1/8M x 1/4-27F
Price $0.60 ea.
B39 - 1/8M x 1/4-20F
Price $0.80 ea.
00420 - 1/4M x 4/36F
Price $0.95 ea.
B44 - 1/4M x 1/8F
Price $1.80 ea.
B52 - 1/4M x 1/8Fheadless
Price $1/50 ea.
B46 - 3/8M x 1/8F
Price $4.95 ea.
B45 - 3/8M x 1/4F
Price $2.50 ea.
B47 - 1/2M x 3/8F
Price $3.50 ea.
B54 - 1/2M x 1/4F
Price $4.75 ea.
B1002 - 1/2M x 1/8F
Price $3.50 ea.
Brass stud bushing. 3/4" diameter,3/8" height. Top is tapped 1/8 IP and bottom is tapped 3/8 IP.
B70
Price $2.75 ea
B919 - Blind ( not through)
Price $1.75 ea.
Unfinished turned brass beaded nozzle. 9/16" height.
20941U - tapped 1/8F x 1/8M
Price $2.35 ea.
B912 - tapped 1/4F x 1/8M
Price $2.95 ea.
Unfinished brass extension coupling. 5/8" diameter, 9/16 height. Tapped 1/4F x 1/8F. Side hole tapped 8/32.
B92 Price $1.75 ea.
Unfinished brass coupling. 5/8" diameter, 9/16" height. Tapped 1/4F x 1/8F.
B86 Price $3.50 ea.
Unfinished brass straight nozzle. 19/32" height. Tap 1/10F x 1/8M. *1/10 is standard European metric thread.
B3770 Price $0.95 ea.
Unfinished brass hex head coupling. 1/2" hex head size, 1/2" height. Tap 1/8 IP all through.
B1210 Price $1.35 ea.
Unfinished brass long plain coupling. 7/8" height. Tap 1/8 IP all through.
B95 - 1/2" diameter Price $1.35 ea.
Unfinished brass long plain coupling. 7/8" height Tap 1/8 IP all through.
B83 - 5/8" diameter Price $3.25 ea.
Unfinished brass plain coupling. 1/2" diameter, 5/8" height. Tap 1/8 IP all through.
B80 - unfinished brass
Price $0.95 ea.
B78 - nickel
Price $1.25 ea.
Unfinished brass heavy plain coupling. 3/4" diameter, 3/4" height. Tap 1/4 IP all through.
B85 Price $4.60 ea.
Unfinished brass coupling.9/16" diameter, 9/16" height. Tap 1/8F x 1/8F.
20879U Price $0.95 ea.
Unfinished brass barrel coupling. 5/8" diameter, 9/16" height. Tap 1/4 IP all through.
B88 Price $3.25 ea.
Heavy brass coupling. 13/16" diameter, 7/8" height. Tap 3/8 IP all through.
A17 Price $5.75 ea.
Offset crossbar with ground screw inserted. 3 3/16" length. Slips over 3/8 IP pipe. Screw holes 2 3/4" center to center. Tapped 8/32.
B644 Price $1.50 ea.
Adjustable crossbar. Slips over 3/8 IP pipe. Adjusts from 4 1/2" to
6 1/2" center to center.
B638 Price $8.95 ea.
Adjustable combination bracket bar with ground screw inserted. Revolves 360*. 4 3/16" length. Screw holes 2 3/16",
2 3/4", 2 15/16" center to center. Tapped 8/32.
SGBP Price $1.75 ea.
4 1/4" Length. Two screw holes tapped 8/32.
105-FF - Holes 2 3/4" center to center
105-EE - Holes 2 7/8" center to center
105-CC - Holes 3 1/2" center to center
!05 -AA - Holes 3 7/8" center to center
Price $1.25 ea.
Flat crossbar. 4 7/8" length. Two holes tapped 8/32 at 4 1/2" center to center.
103-BB Price $2.25 ea.
Universal crossbar, 4" diameter. Six holes tapped 8/32 at 2 1/2" center to center, 2 3/4" center to center, and 3 1/2" center to center.
UB-1 Price $4.50 ea.
Universal crossbar. 3" x 4" diameter. Two holes tapped 8/32 at 3 1/2" center to center.
UB-2 Price $4.50 ea.
Universal style crossbar with center locking screw. Two holes tapped 8/32 at 3 1/2" center to center.
UB-9 Price $2.75 ea.
Diameter 1 1/32". Height 1 9/64". Tapped 8/32.
B565 - Unfinished brass
B567 - Antique brass
B568 - Black
B569 - Nickel plated
F1855 - White
Price $0.65 ea.
8/32 stud used to attach knobs to crossbars.
A1223 - 2"
A1227 - 2 1/2"
A1231 - 3"
Price $0.40 ea.

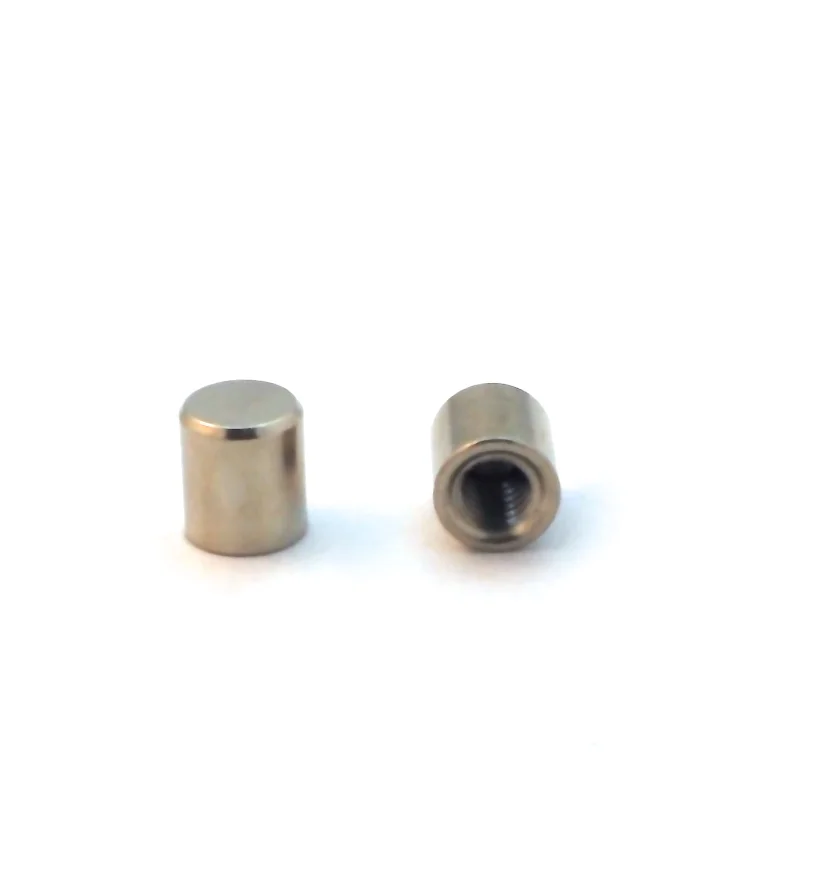

9/32" Height. 5/16" diameter. Tapped 8/32.
20709 - Unfinished brass
20709N - Nickel plated
20709A - Antique brass
FICN01 - White
Price $0.65 ea.
Solid brass pear shape knob. 1/2" diameter. 1/2" height. Tapped 8/32.
00119 Price $0.65 ea.
Unfinished brass arm end. 13/16" height. 1/8 tapped on all 4 sides.
20874U Price $4.25 ea.
Unfinished solid brass elbow. Bottom and one side hole. 7/8" diameter. 1" height. Holes tapped 1/8 IP.
B299 Price $4.25 ea.
Unfinished brass arm end. 13/16" height. Tapped 1/8 IP on all three sides.
20932 Price $3.75 ea.
Unfinished solid brass elbow. 5/8" diameter, 7/8" height. Tapped 1/8 IP.
B63 Price $4.50 ea.
Unfinished brass eyelet bushing for shade holders or socket covers.
20918 - 8/32F
21031 - 6/32F
Price $0.30 ea.
Small brass flange. 1 1/4" wide, 7/16" height. Mounting holes 1" center to center. Tap 1/8 IP.
B590 Price $7.50 ea.
21230N - Nickel plated Price $7.50 ea.
Unfinished brass gas attachment. 2 1/2" length. 2 1/8" center to center. 1/8 IP male thread x Slip 1/8 IP.
B594 Price $3.50 ea.
Unfinished turned brass, pipe or tube slip ring with set screw.
B351 - 3/8" slip
Price $1.10 ea.
A532 - 1/2" slip
Price $1.20 ea.
22561U - 5/8" slip
Price $2.10 ea.
B527 - 3/4" slip
Price $3.95 ea.
B528 - 7/8" slip
Price $3.95 ea.
Snap bushing used as cord saver.
Black
B824 - .313 - 5/16" Hole
B827 - .375 - 3/8" Hole
B548 - .437 - 7/16" Hole
White
B826 - .375 - 3/8" Hole
Price $0.50ea.
Black strain relief bushing. For use with SPT -1 cord. Fits 7/16" hole. Eliminates knot tying.
B558 Price $1.20 ea.

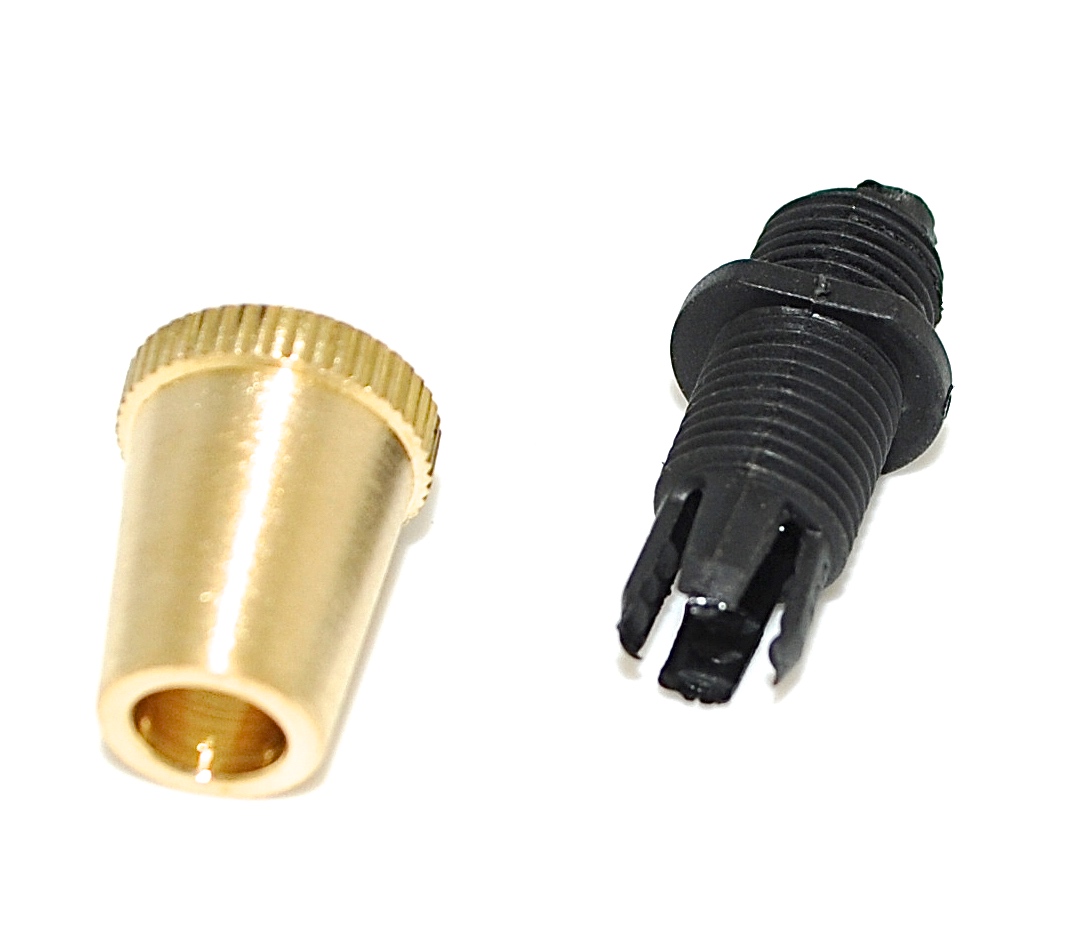

2-Piece cord grip for SVT 18/2 wire. I/8 IP male thread.
D2595 - Black
D2596 - White
Price $1.30 ea.
2-Piece cord grip for SVT 18/2 wire. 1/8 IP Female.
D2598 - Black
D2599 - White
Price $1.30 ea.
Clear plastic cord grip bushing for SVT-2 and SVT-3 cord. Cord entrance hole ID=.29".
26932 Price $3.00 ea.

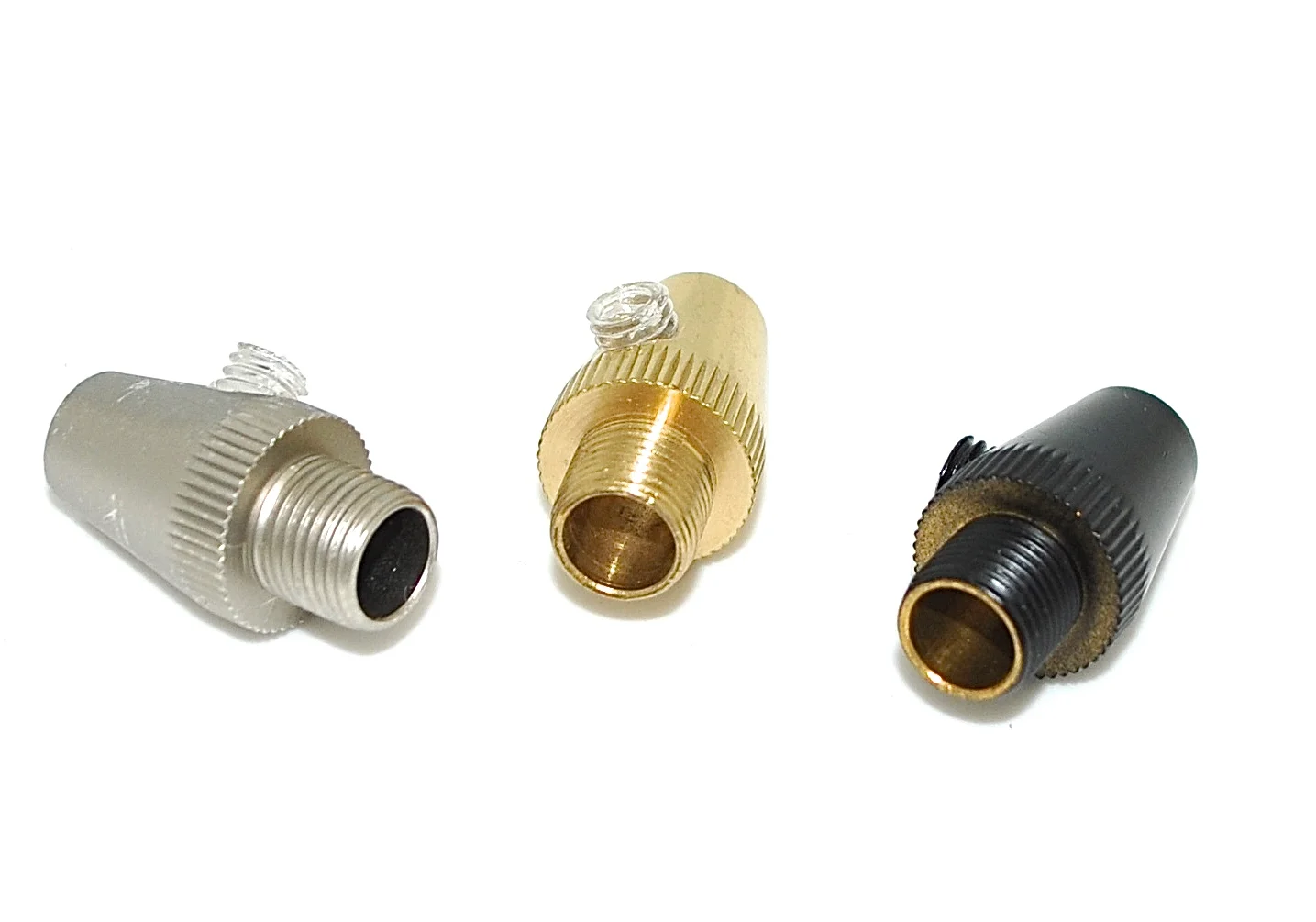

Metal cord grip bushing with plastic set screw for SVT 18/3 and SVT 18/2. Can be used on plastic or cloth covered wire.
.293" ID, 1 1/16" long.
26945SN - Satin nickel
26945 - Brass
26945BK - Black
Price $5.50 ea.
Polished brass finish cord grip bushing for use with twisted pair and SVT 18-2 plastic or cloth covered wire. Bushing body is brass and grip is plastic. Cord entrance hole ID = .29".
1 1/8" long, 5/8" diameter.
26930 Price $3.95ea.
White cord grip. Strain relief hole for floor and table lamps.
Slips 1/8 IP
1790/10B - 10 mm hole
Slips 1/4 IP
1790/13B - 13 mm hole
Price $2.25 ea.
Steel hickey with 8/32 ground hole.
9/16" Height
B619 - 1/8 x 1/8F
Price $1.75 ea.
1" Height
B601 - 1/8 x 1/8 F
Price $2.50 ea
B602 - 1/8 x 1/4 F
Price $2.10 ea.
B603 - 1/4 x 1/4 F
Price $2.50 ea.
11/2" Height
B607 - 1/8 x 1/8 F
Price $2.75 ea.
B608- 1/8 x 1/4 F
Price $2.95 ea.
Iron hickey. 1 1/8" height.
B610 - 1/8 x 1/8 F
B611 - 1/4 x 1/4 F
B612 - 3/8 x 3/8 F
B615 - 1/4 x 3/8 F
Price $7.50 ea.
3" unfinished solid brass square check plate. Slips 1/8 IP.
10062 Price $5.95 ea.
3/4" unfinished solid brass square check plate. Slips 1/8 IP.
B1703 Price $4.25 ea.
Brass plated stamped steel beaded check ring. 1 1/8" diameter. Slips 1/8 IP.
B174 Price $1.50 ea.
Check ring with curled edge. Slips 1/8 IP.
Brass Plated
B131 - 1/2" Price $0.55 ea.
B132 - 5/8" Price $0.65 ea.
B133 - 3/4" Price $0.75 ea.
B134 - 7/8" Price $0.75 ea.
B135 - 1" Price $1.30 ea.
B136 - 1 1/8" Price $1.35 ea.
B137 - 1 1/4" Price $1.40 ea.
B138 - 1 3/8" Price $1.40 ea.
B139 - 1 1/2" Price $1.50 ea.
B140 - 1 3/4" Price $2.55 ea.
B141 - 2" Price $2.65 ea.
Solid Brass
E167 - 2 1/4" Price $3.00 ea.
E169 - 2 1/2" Price $3.50 ea.
E171 - 2 3/4" Price $3.50 ea.
Antique Brass Finish
B160 - 1/2" Price $0.55 ea.
22500A - 5/8" Price $0.65 ea.
22501A - 3/4" Price $0.75 ea.
B164 - 7/8" Price $0.75 ea.
B165 - 1" Price $1.30 ea
B166 - 1 1/8" Price $1.35 ea.
B167 - 1 1/4" Price $1.40 ea.
B168 - 1 3/8" Price $1.40 ea.
B169 - 1 1/2" Price $1.50 ea.
994AB - 1 3/4" Price $2.55 ea.
Nickel Plated
22499N - 1/2" Price $0.55 ea.
B142 - 5/8" Price $0.65 ea.
B143 - 3/4" Price $0.75 ea.
B144 - 7/8" Price $0.75 ea.
B145 - 1" Price $1.30 ea.
B146 - 1 1/8" Price $1.35 ea.
B147 - 1 1/4" Price $1.40 ea.
B148 - 1 3/8" Price $1.40 ea.
B149 - 1 1/2" Price $1.50 ea.
22508N - 1 3/4" Price $2.55 ea.
22509N - 2” Price $2.65 ea.
Plated check ring with curled edge. Slips 1/4IP.
Brass Plated
B180 - 3/4" Price $0.75 ea.
22512 - 7/8" Price $1.60 ea.
B181 - 1" Price $1.30 ea.
B182 - 1 1/8" Price $1.35 ea.
B183 - 1 1/4" Price $1.40 ea.
B184 - 1 3/8" Price $1.40 ea.
B185 - 1 1/2" Price $1.50 ea.
Nickel Plated
07061 - 3/4" Price $0.75 ea.
07063 - 1" Price $1.30 ea
07064 - 1 1/8" Price $1.35 ea.
07065 - 1 1/4" Price $1.40 ea.
07067 - 1 1/2" Price $1.50 ea.
07069 - 1 3/4" Price $2.55 ea.
07071 - 2” Price $2.65 ea.
Solid brass turned check ring. Unfinished brass.
SLIPS 1/8 IP
B102 - 5/8" Price $1.60 ea.
B103 - 3/4" Price $1.85 ea.
B104 - 7/8" Price $1.90 ea.
B105 - 1" Price $2.10 ea.
B106 - 1 1/8" Price $2.75 ea.
B107 - 1 1/4" Price $3.00 ea.
B108 - 1 3/8" Price $2.65 ea.
B109 - 1 1/2" Price $4.75 ea.
B120 - 1 3/4" Price $7.00 ea.
B121 - 2" Price $5.25 ea.
Slips 1/4 IP
B122 - 5/8" Price $1.60 ea.
B123 - 3/4" Price $1.75 ea.
B124 - 7/8" Price $1.85 ea.
B125 - 1" Price $2.00 ea.
22543U - 1 1/8" Price $2.35 ea.
B127 - 1 1/4" Price $2.55 ea.
B128 - 1 3/8" Price $2.65 ea.
22549U -1 1/2" Price $2.75 ea.
55584 - 1 3/4” Price $4.75 ea.
Solid brass cross drilled screw. 5/32" head diameter, 5/32" shank. #6/32 thread.
B479 Price $1.25 ea.
Steel thumb screw. 1/2" shank.
8/32 THREAD
B460 - Brass plated
B461 - Nickel plated
B462 - Black
B463 - Antique brass
6/32 THREAD
B472 - Brass plated
Price $0.25 ea.
Solid brass thumb screw. 3/8" head diameter, 1/4" shank.
#8/32 thread.
B475 Price $0.95 ea.
Solid brass thumb screw 3/8" head diameter. #9/32 thread.
B490 - 3/4" shank
Price $.080 ea.
B491 - 1 1/2" shank
Price $1.50 ea.
Die cast key. 1 5/8" long.
4/36 Thread
20920A - Antique brass finish
20920 - Brass plated
6/32 Thread
B502 - Brass plated
Price $1.95 ea.
Brass key extension. Size does not include male thread.
4/36F x 4/36M
20921 - 1/2"
20894 - 3/4"
20922 - 1"
6/32F x 6/32M
B506 - 3/4"
6/32F x 4/36M
B508 - 3/4"
4/36F x 6/32M
B509 - 3/4"
Price $0.80 ea.
Unfinished brass knurled switch knob. 1 5/64" diameter, 5/8" length. Tap 4/36.
B684 Price $1.60 ea.
Solid brass knurled key. Tapped 4/36 F. 9/16" diameter, 3/4" overall.
21007 - Solid brass
21007B - Bronze finish
21007N - nickel plated
Price $4.50 ea.
B510 - 1 1/4” long, tapped 4/36, Solid Brass
Price $4.50 ea.

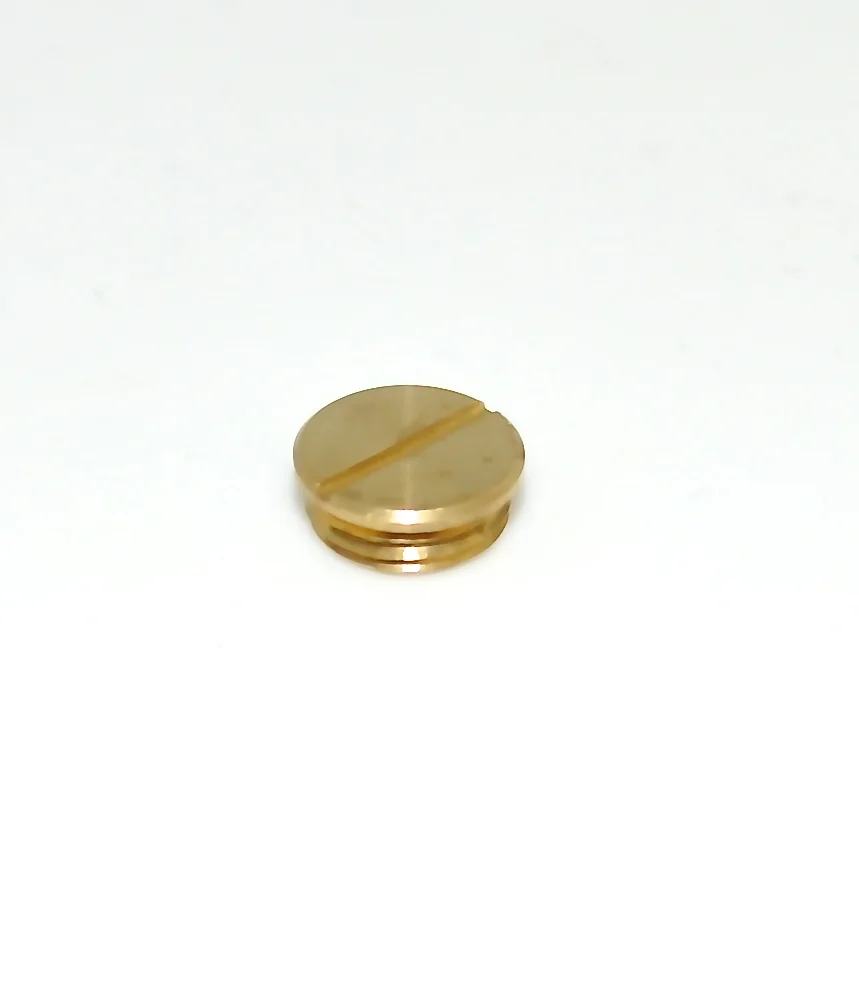

Solid brass slotted plug. 1/8 IP Male.
B480 Price $1.25 ea.
B482 - 1/4 IP Male Price $1.25 ea.
Unfinished brass rosette cap. 3/4" diameter, tapped 1/8 IP.
B698 Price $4.50 ea.

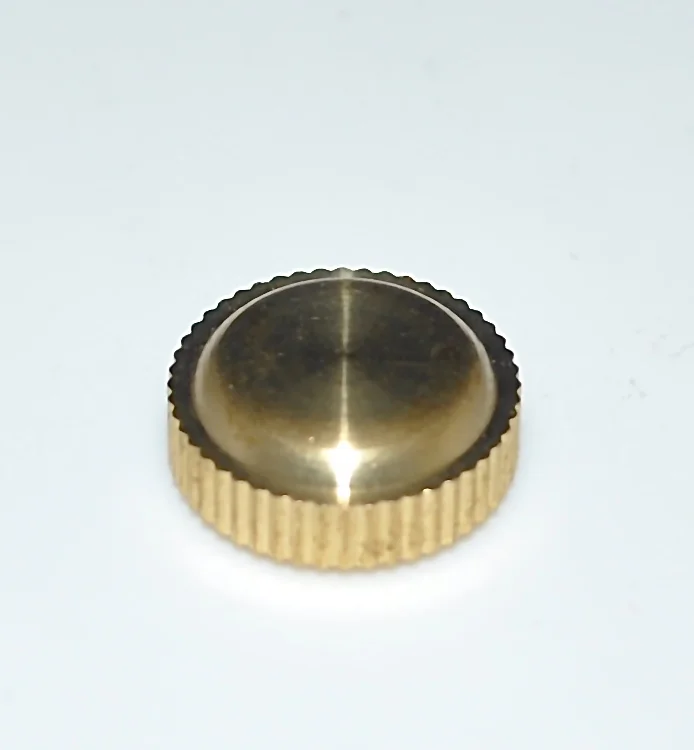

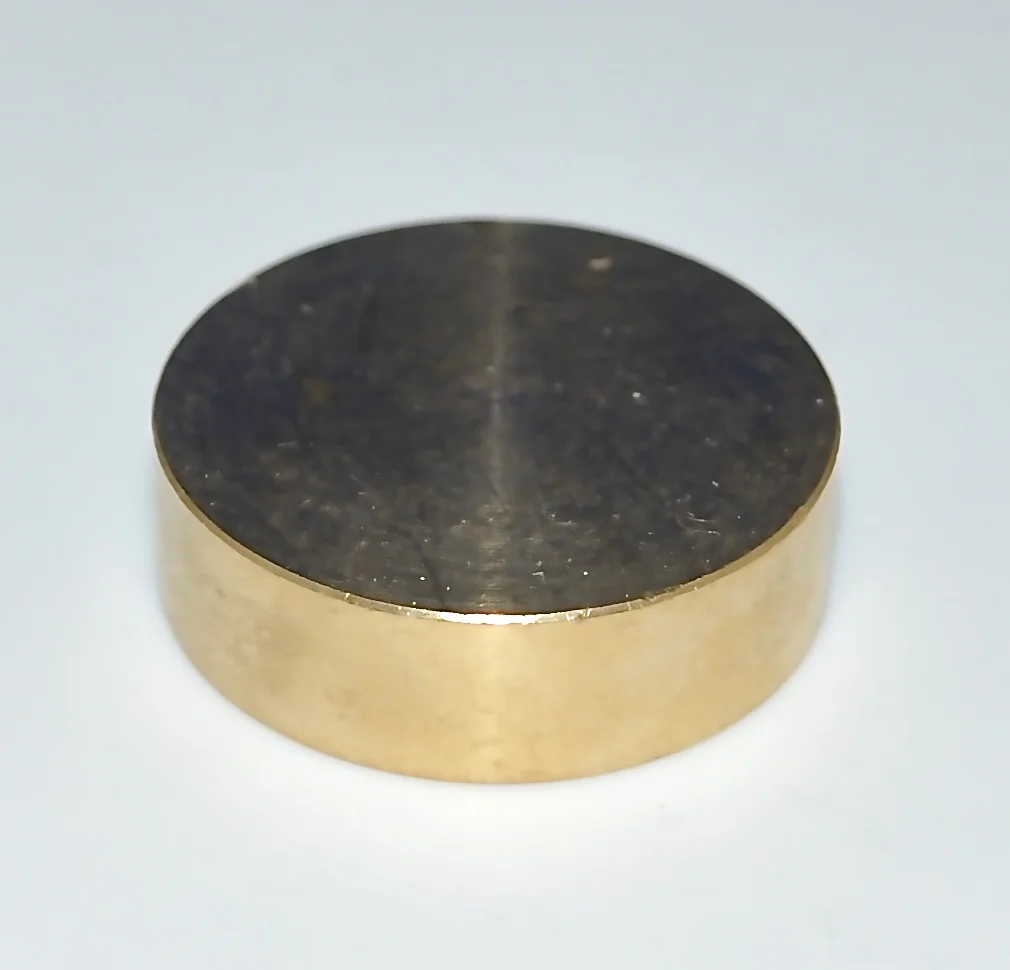

Unfinished solid brass flat cap. 1 1/4" diameter, 3/8" height. Tapped 1/8 IP.
B4710 Price $8.25 ea.
Unfinished solid brass flat knurled bracket cap. 9/16" diameter, 7/32" height, and tapped 1/8 IP.
B343 Price $0.95 ea.
27/32" diameter, 1/2" height. Tapped 1/4 IP. Unfinished brass.
B331 Price $2.95 ea.

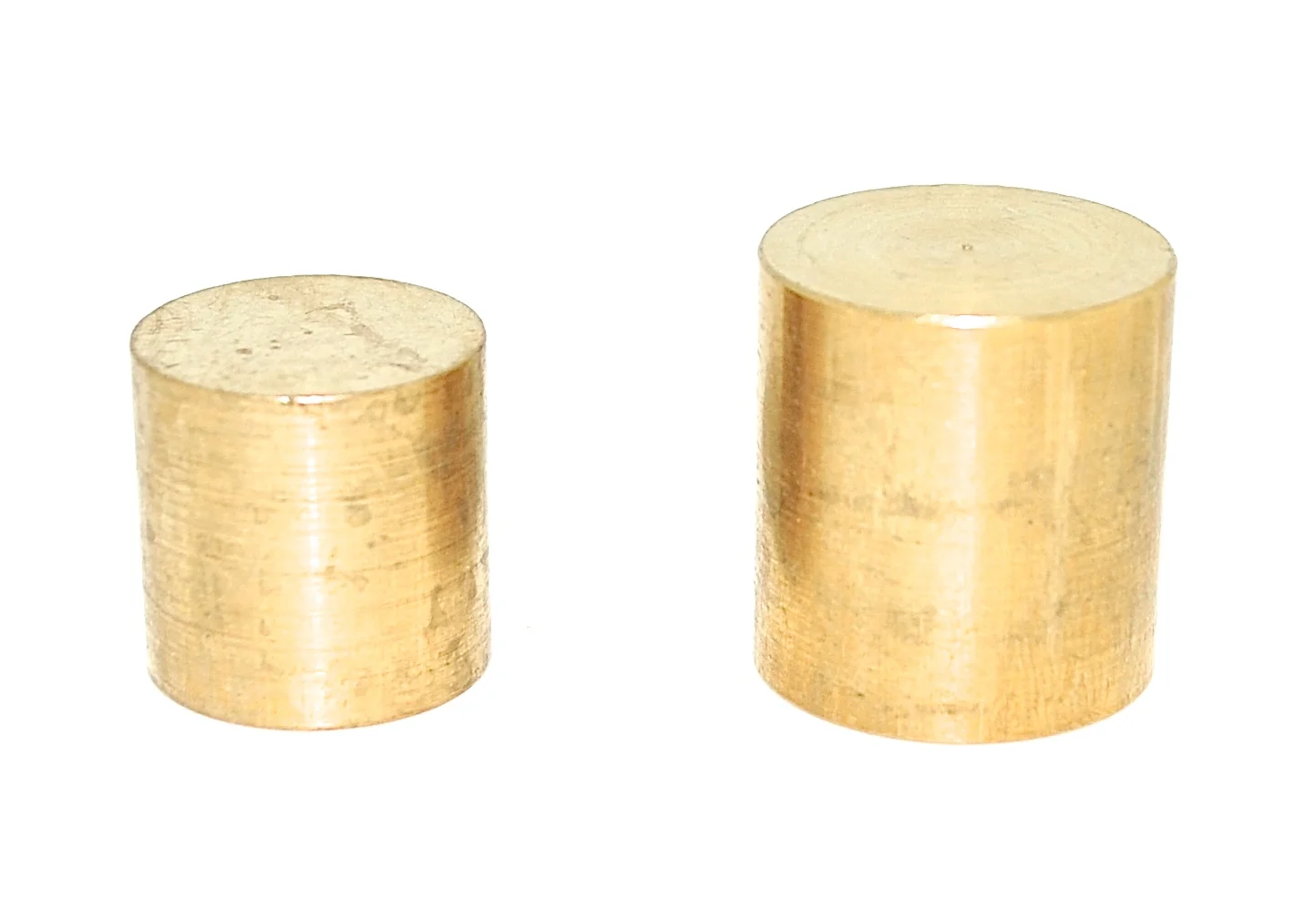

Solid brass, unfinished flat cap.
21172U - 7/8" diameter, 15/16" high, tapped 1/4 IP.
Price $8.95 ea.
21176U - 3/4" diameter, 3/4" high, tapped 1/8 IP.
Price $6.50 ea.

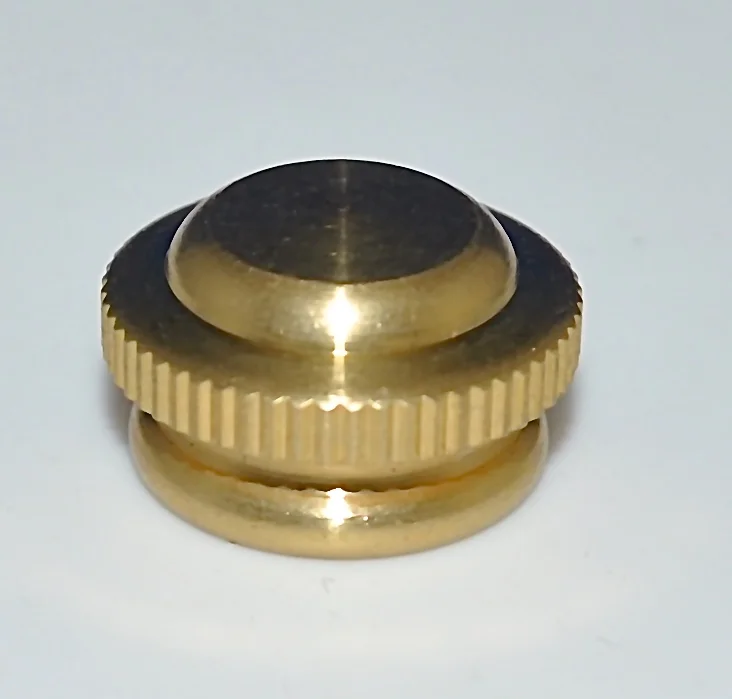

Unfinished brass flat knurled knob. 15/16" diameter, 5/16" height. Tapped 1/8 IP.
B341 Price $2.75 ea.
Brass bracket cap. 9/16" diameter, 1/4" height. Tapped 1/8 IP.
21018A - Antique brass
B345 - Unfinished brass
B347 - Nickel plated
Price $1.50 ea.
Unfinished brass acorn knob. 1/2" diameter, 1/2" height. Tapped 1/8 IP.
21023U Price $1.50 ea.
Small unfinished brass pyramid knob. #6 beaded chain hole.
9/16" diameter, 5/8" height. Tapped 1/8 IP.
B847 Price $2.15 ea.
Small pyramid knob. 3/4" height, 9/16" diameter. Tapped 1/8 IP.
B348 - Antique brass
B349 - Brass plated
Price $1.50 ea.
Unfinished solid brass pyramid knob. Through side hole for prism pin. 9/16" diameter, 5/8" height. Tapped 1/8 IP.
B320 Price $1.75 ea.
Solid brass ball nut. 3/8" diameter. Tapped 8/32.
B353 - Unfinished brass
Price $0.75 ea.
2100N - Nickel plated
Price $0.65 ea.
21001BK - Black
Price $1.00 ea.
Unfinished solid brass pull chain ball. Top slips # 6 beaded ball chain. 5/8" diameter.
B811 Price $3.50 ea.
Unfinished turned brass ball.
00500 - 3/8" diameter, tapped 4/36
B370 - 3/8" diameter, tapped 6/32
Price $0.85 ea.
3395 - 7/16" diameter, tapped 8/32
Price $1.20 ea.
B355 - 1/2" diameter, tapped 8/32
Price $1.50 ea.
00581 - 5/8" diameter, tapped 8/32
Price $4.75 ea.
Unfinished turned brass ball.
B642 - 3/4" diameter, tapped 1/8 IP
Price $5.75 ea.
B643 - 7/8" diameter, tapped 1/8 IP
Price $6.25 ea.
B630 - 1" diameter, tapped 1/8 IP
Price $7.50 ea.
B1634 - 1" diameter, tapped 1/4 IP
Price $7.50 ea.
Unfinished solid brass half ball. 1/2" diameter, 3/8" height. Tapped 1/8 IP.
B356 Price $1.75 ea.
Unfinished solid brass half ball. Tapped 1/8 IP.
B381 - 3/4" diameter
Price $5.25 ea.
B882 - 1 1/4" diameter
Price $6.75 ea.
Tapped 1/4 IP.
B384 - 1 1/4" diameter
Price $8.50 ea.
Small, unfinished cast brass hook with wire way. 1" height, tapped 1/8 IP.
10935U Price $4.50 ea.
Die cast hook comes with # 10-24 hardware, hanger bolt spring toggle and running thread stud.
6/NI - Nickel
K107 - White
K101 - Brass plated
K102 - Antique brass
K104 - Black
Price $1.95 ea.

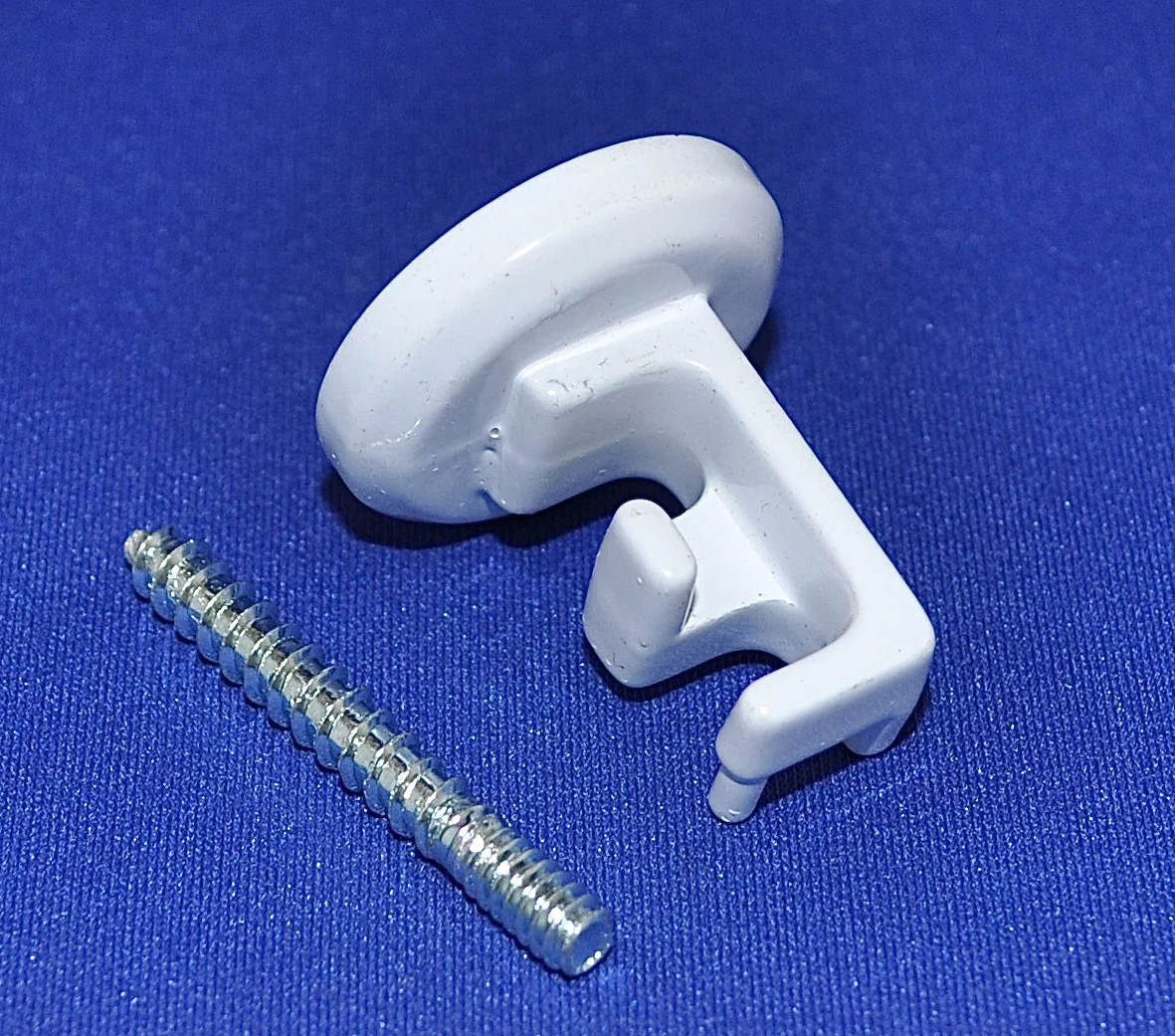

White die cast hook for use with round SVT cord. Comes with running thread stud.
4/SVT Price $2.75 ea.
Unfinished cast brass hook with wire way. 1 3/4" x 1 5/8".
Tapped 18 IP.
10936U Price $10.50 ea.
Pressure cast zinc loop with wire way. 1" loop diameter, 1 1/8" height. Threaded 1/8 IP Male.
B701 - Black
B706 - Antique brass
B709 - Chrome plated
B704 - Brass plated
12972W - White
Rust color is No Longer Available
Price $2.50 ea
Pressure cast zinc loop with wire way. 1" loop diameter, 1 1/8" height. Tapped 1/8 IP F.
B700 - Black
B705 - Antique brass
B703 - Brass plated
B708 - Chrome plated
B697 - White
B762 - Rust
Price $2.50 ea.
1" die cast metal loop. Satin nickel. Tapped 1/8 IP Female.
6257-SN Price $4.00 ea.
Note: Male threaded version no longer available.
Unfinished cast brass loop with wire way. 7/8" diameter. 1" height. Tapped 1/4 IP.
E776 Price $3.75 ea.
Unfinished cast brass loop with wire way. 1" height. Tapped
1/8 IP.
10954U - Female
10939U - Male
Price $4.00 ea.
Unfinished cast brass loop with wire way.
1 1/2 DIAMETER
E813 - Tapped 1/8 IP
Price $5.75 ea.
20855N - Nickel Tapped 1/8 IP
Price $6.00 ea.
21196BK - BLACK Tapped 1/8 IP
Price $6.00 ea.
E853 - Tapped 1/4 IP
Price $6.75 ea.
1 5/8" DIAMETER
E854 - Tapped 1/8 IP.
Price $6.50 ea.
2 1/4" DIAMETER
E852 - Tapped 1/4 IP
Price $13.50 ea.
Screw collar loop with ring. 1 1/4" base ring diameter. 1 3/4" height. Seats 1" canopy hole. Tapped 1/4 IP.
B714 - Brass plated
B715 - Antique Brass
B716 - Black
B718 - White
Price $7.95 ea.
Cast brass screw collar lop and ring with wire way. 1 3/16" base ring diameter. 1 3/4" height. Seats 1" canopy hole.
Tapped 1/4 IP.
E785 - Unfinished Brass
E6660 - Satin Nickel plated
10996N - Chrome plated
10996A - Antique Brass
10996B - Antique Bronze
Price $15.50 ea.
Heavy duty unfinished cast brass screw collar loop with wire way.
3 1/4" height. Has 1 1/2" base ring diameter and seats
1 7/16" canopy hole. Tapped 3/8 IP.
E795 - Unfinished brass Price $55.00 ea.
Unfinished cast brass loop with no wire way. 3" width, 3 1/2" height. Tapped 1/8 IP.
E5540 Price $12.75 ea.
Solid brass art deco loop. Height 2 1/8". Tapped 1/8 IP.
10970 - Polished and lacquered
10970U - Unfinished brass (Limited supply)
10970N - Nickel plated
Price $22.00 ea.
Unfinished brass neck. 9/16" height. 3/4" diameter.
20857U - Tapped 1/8 IP.
B207 - Slips 1/8 IP.
Price $2.25 ea.
Nickel neck. 9/16" height, 3/4" diameter.
20856N - Tap 1/8 IP
10949N - Slips 1/8 IP.
Price $1.75 ea.
Nickel neck. 7/16" height, 1 1/16" diameter.
20869N - Nickel finish. Tapped 1/8 IP.
Price $3.15 ea.
20870U - Unfinished brass. Slips 1/8 IP.
Price $1.60 ea.
Unfinished brass turned neck. 5/8" height, 1 5/16" diameter.
Slips 1/4 IP.
B217 Price $5.50 ea.
Unfinished brass beaded neck. 1 5/16" height, 1 3/16" diameter.
B225 - Tap 1/8 IP Price $1.90 ea.
B227 - Slip 1/8 IP Price $2.75 ea.
Nickel neck. 7/8" height, 1 3/16" diameter.
10946N - Tap 1/8 IP Price $2.60 ea.
01158 - Slips 1/8 IP Price $1.80 ea.
Unfinished brass beaded neck. 1 1/4" height, 7/8" diameter.
10944U - Tap 1/8 IP Price $4.20 ea.
10945U - Slips 1/8 IP Price $4.95 ea.
Nickel neck. 1 1/4" height, 7/8" diameter.
10944N - Tap 1/8 IP.
10945N - Slips 1/8 IP.
Price $5.50 ea.
Unfinished brass spindle. 1 3/4" height, 1 1/8" diameter.
Tapped 1/8 IP.
B267 Price $11.75 ea.
Unfinished brass turned neck. 7/8" height, 1 1/4" diameter.
Slips 1/4 IP.
B223 Price $8.25 ea.
Unfinished solid brass spindle. 1 1/2" height, 1 3/16" diameter. Slips 1/8 IP.
B249 Price $6.50 ea.
Unfinished solid brass spindle. 1 1/2" height, 5/8" diameter.
Tapped 1/8 IP.
20860U Price $3.60 ea.
Unfinished solid brass spindle. 2 1/4" height, 5/8" diameter.
Tapped 1/8 IP.
B253 Price $4.00 ea.
Unfinished solid brass spindle. 2" height, 7/8" diameter.
20862U - Unfinished brass Slips 1/8 IP
Price $7.75 ea.
20862A - Antique Brass Slips !/8 IP
Price $7.75 ea.
20862N - Nickel Slips 1/8 IP
Price $7.75 ea.
20862B - Bronze Slips 1/8 IP
Price $7.75 ea.
20861U - Tap 1/8 IP.
Price $8.50 ea.
Turned unfinished solid brass spindle. 3 1/8" height, 3/4" diameter.
NE822- Slip 1/8 IP
10942 - Tap 1/8 IP.
Price $15.00 ea.
Unfinished solid brass spindle. 4 1/2" height, 1" diameter.
Tapped 1/8 IP.
B260 Price $17.50 ea.
Unfinished solid brass spindle. 4 1/8" height, 3/4" diameter.
Tapped 1/8 IP.
B263 Price $10.50 ea.
Unfinished stamped steel neck with 7/8" top diameter. Bottom diameter is 1 5/16" Slips 1/8 IP.
B1910 - 1 1/2" height
B1907 - 2"
Price $1.50 ea.
Stamped steel necks with 5/8" top diameter. Bottom diameter is
1 5/16". Slips 1/8 IP.
Brass Plated
20962 - 1/2" height
B1240 - 1" height
B1241 - 1 1/2" height
Nickel Plated
20962N - 1/2" height
20963N - 1" height
21112N - 1 1/2" height
Price $1.00 ea.

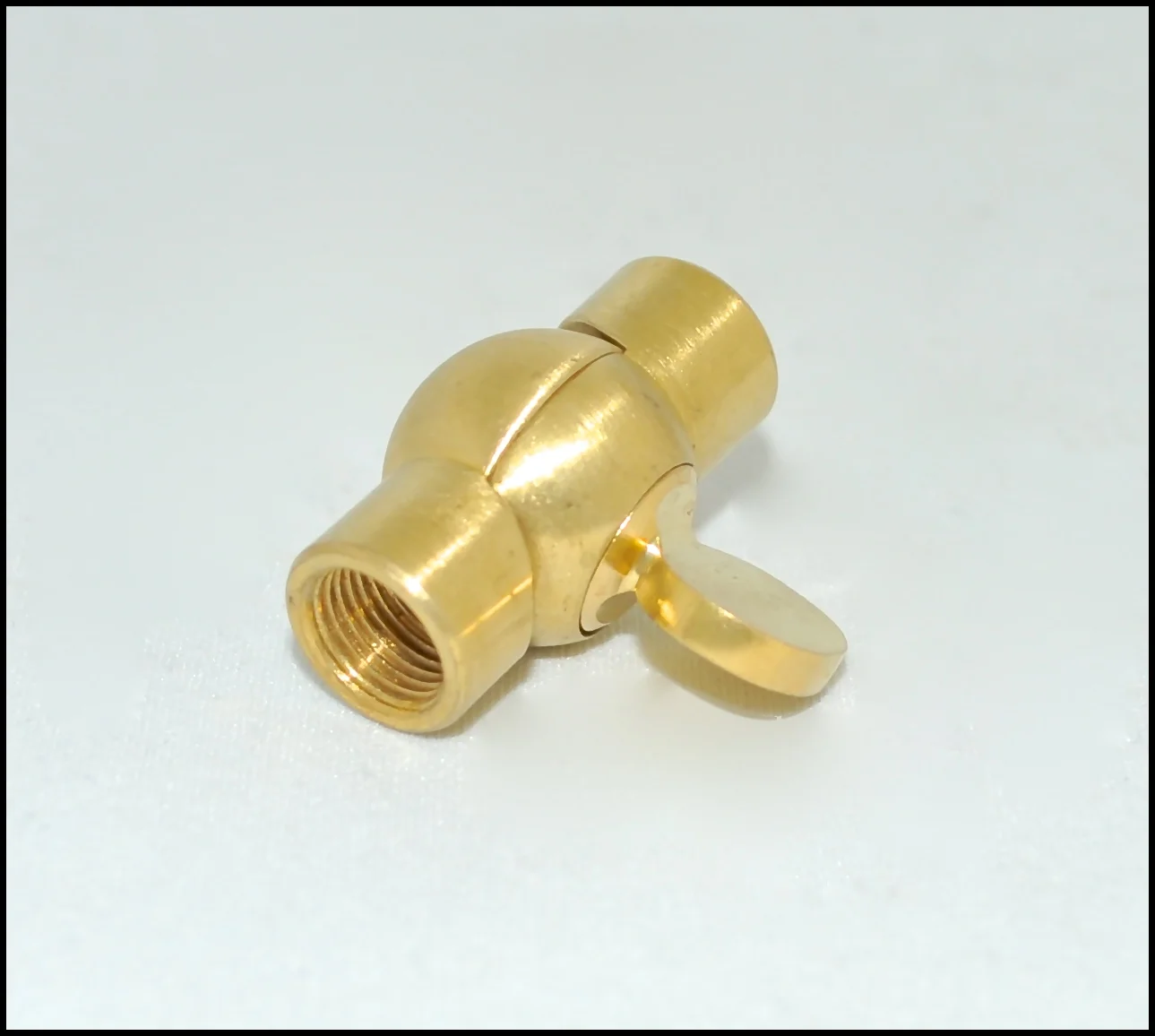

Solid brass knuckle swivel with butterfly knob. 1/2" diameter,
15/16" height. Tapped 1/8F x 1/8F.
B530 Price $14.25 ea.
Gyromatic swivel. 1 5/16" diameter, 2 5/8" height. 1/8M top x 1/8F bottom.
B518 - Vacuum Brass
B519 - Vacuum Chrome
Price $6.50 ea.

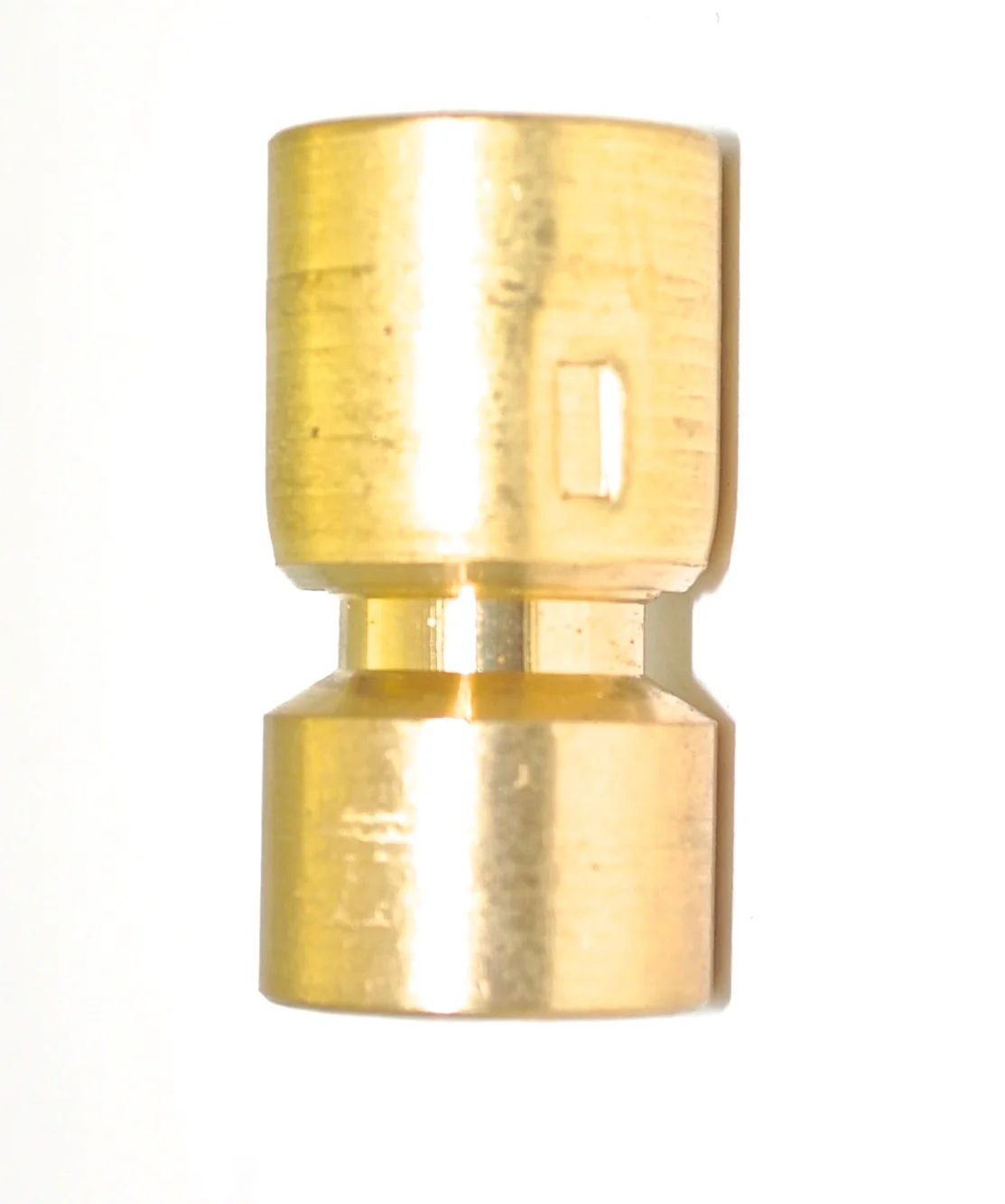

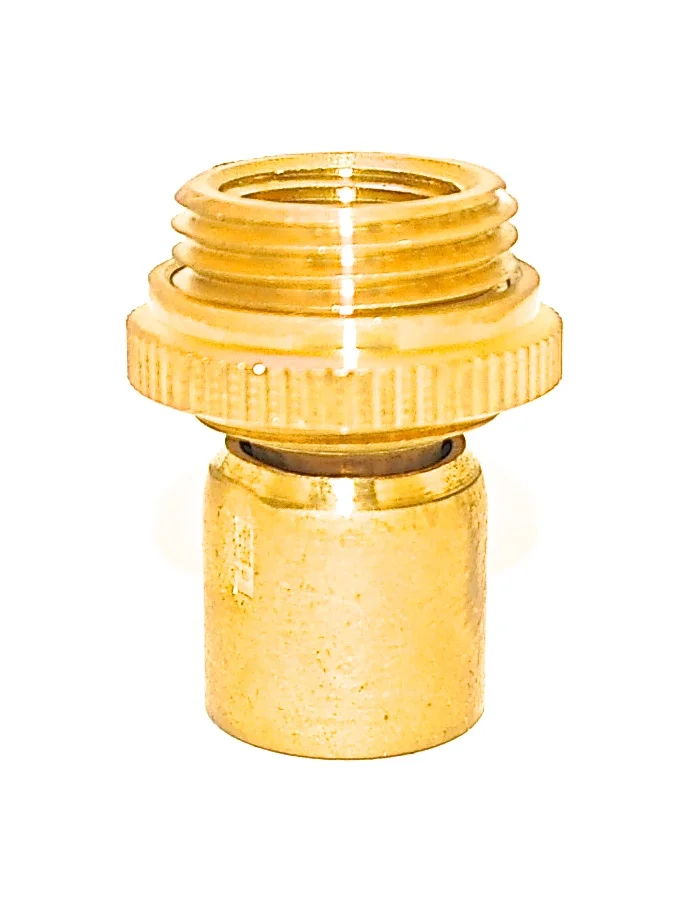

Small solid brass hang straight swivel. Degree of swivel is 20*. Tapped
1/8 x 1/8 IP. Diameter 5/8".
B4735 Price $6.75 ea.
Small brass hang straight swivel. Degree of swivel 20*. Ring nut to seat 7/8". Height 1 1/8". Tapped 1/4F x 1/8F.
B950 Price $8.50 ea.
Solid brass swivel with butterfly knob. 1 5/16" height, 1/2" diameter.
Tapped 1/8F x 1/8F
B530 Price $12.25 ea.
Unfinished solid brass picture light swivel. Approved with stop.
1 3/4" height, 5/8" diameter. 1/8F x 1/8M.
B520 Price $5.25 ea.
Gyromatic swivel. 1 5/16" diameter, 2 5/8" height. 1/8M top and bottom.
B4730 - Electric Brass
B4731 - Electric Chrome
Price $6.50 ea.
Brass ball swivel approved with stop. 5/8" diameter, 1 1/2" height. 1/8M top and 1/8F bottom.
B512
Price $9.50 ea.
B513 - 1 5/16" Height, 9/16" Diameter
Price $9.50 ea.
Brass swivel. 1 1/16" diameter, 1 1/4" height. 1/8 M top and 1/8F bottom.
B514 Price $5.50ea.
Unfinished brass swivel. 7/8" diameter, 1 5/8" height. 1/4F x 1/8M.
B949 Price $6.50 ea.
Unfinished solid brass candle cup. Outside diameter 1 5/16",
Inside diameter 7/8". Height 1". Tapped 1/8 IP.
B587 Price $11.95 ea.
Candelabra candle cup. Outside diameter 1".
Inside diameter 1 5/16". Height 1 7/8". Slips 1/8 IP.
E314 - Unfinished solid brass
E318 - Antique brass plated
Price $3.75 ea.
E317 - Brass plated
Price $2.50 ea
11660N - Nickel plated
Price $3.75 ea.
Medium base candle cup. Inside diameter 1 1/2". Height 2". Slips 1/8 IP.
E1410 - Brass plated
E1409 - Antique brass
Price $5.75 ea.
E1408 - Chrome plated
Price $6.65 ea.
E6499 - Unfinished solid brass
Price $8.75ea.
Unfinished cast brass center body ring. Center hole tapped 1/8 IP. Side holes slip 1/8 IP.
11572U - 3" diameter with 3 side holes
Price $42.00 ea.
E5194 - 4" diameter with 4 side holes
Price $43.00 ea.
11576U - 4" diameter with 5 side holes
Price $51.00 ea.
E5196 - 4" diameter with 6 side holes
Price $45.00 ea.

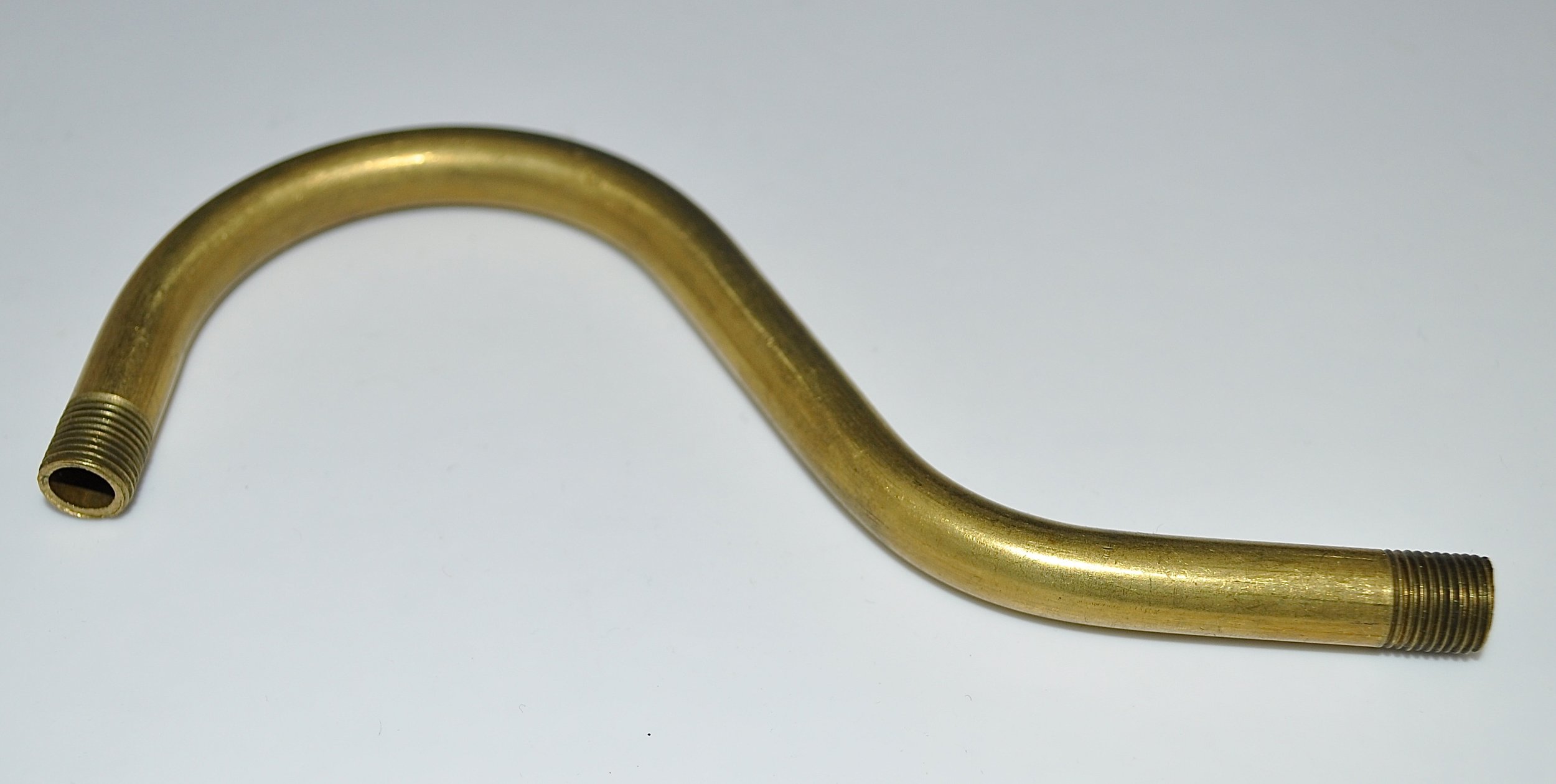

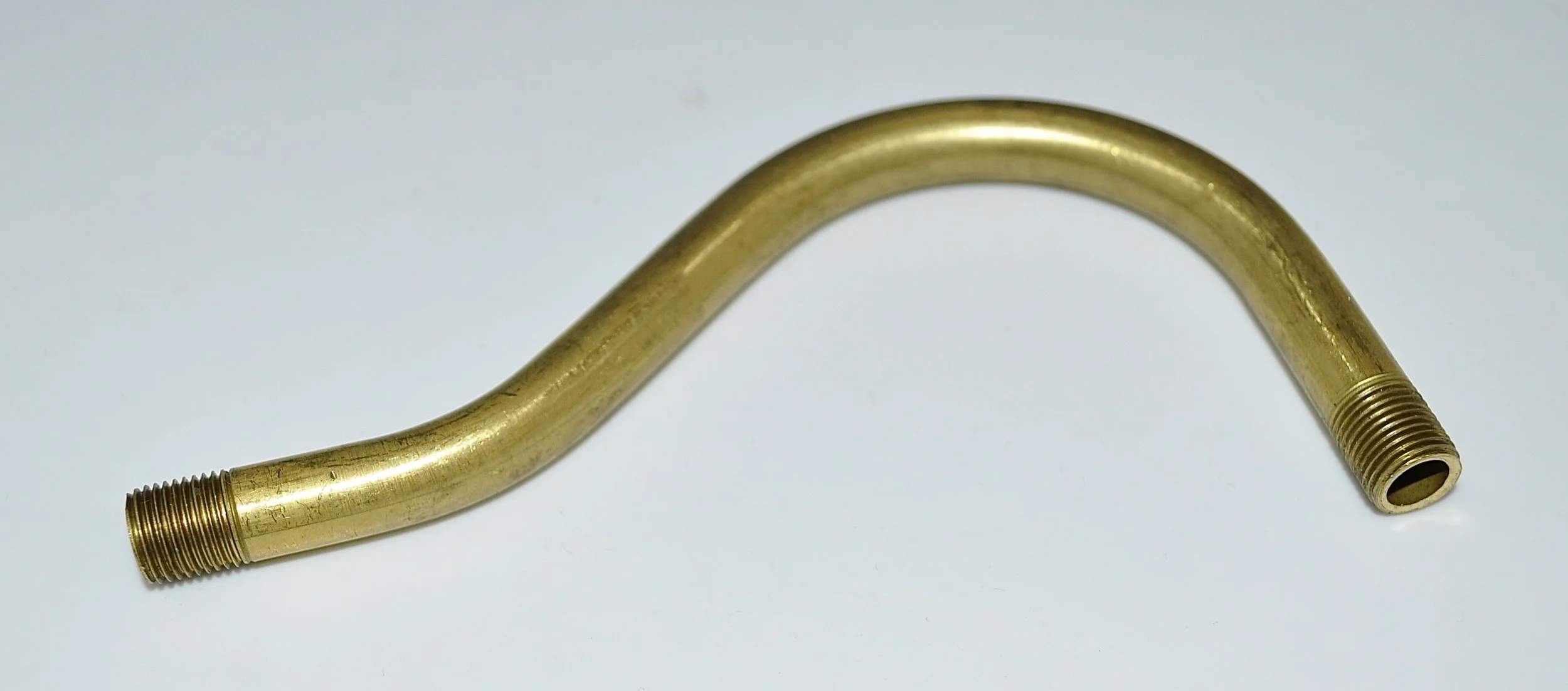

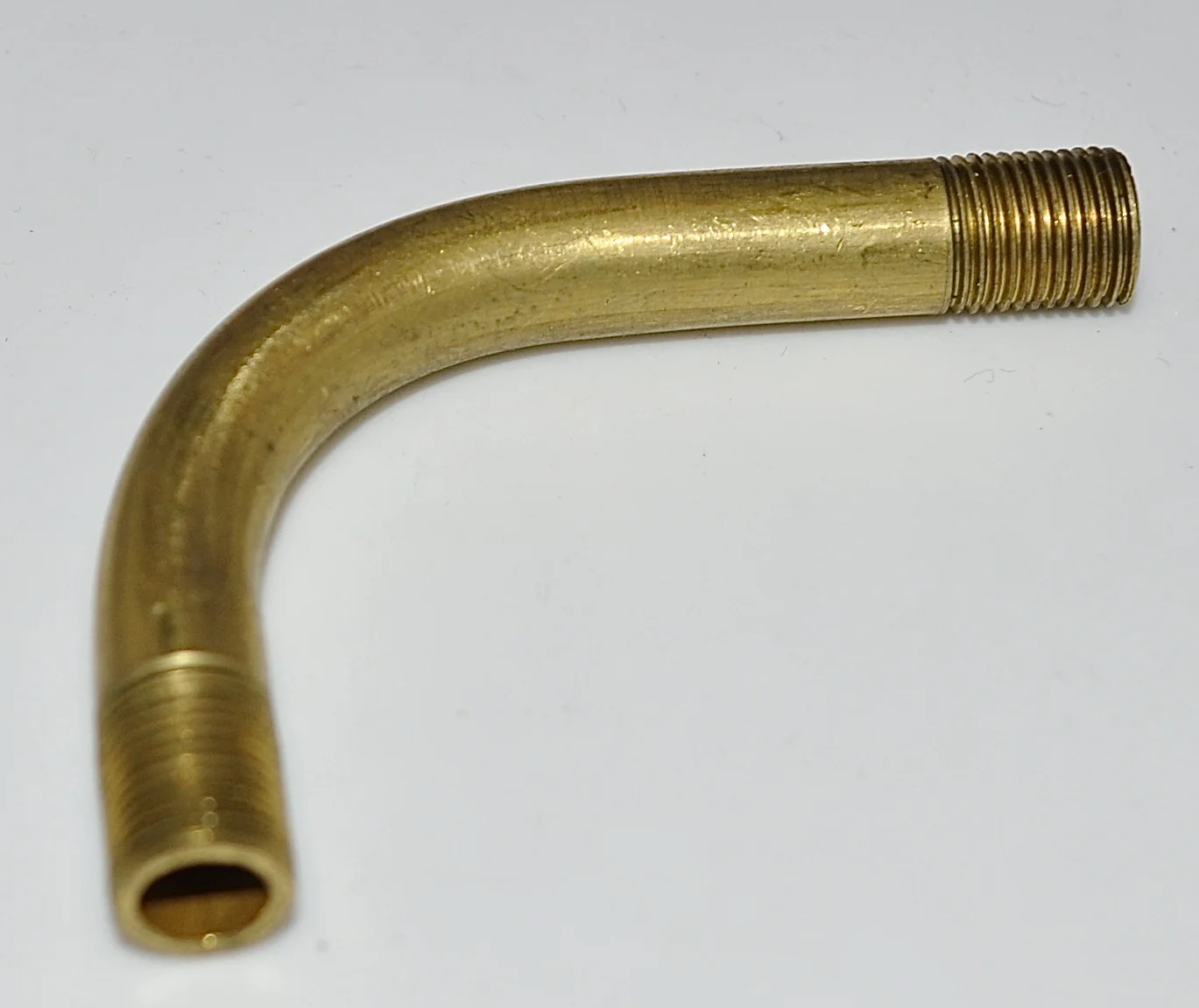

Unfinished solid brass bent arm. 2 x 2 1/2". Ends tapped
1/8 IP, 1/2" long.
A176 Price $3.50 ea.
Unfinished brass bent arm. 2" wide x 3 3/8" length.Ends tapped 1/8 IP.
20586 Price $5.95 ea.
Unfinished solid brass pin up bent arm. 3 5/8" long. 1 3/4" depth. Ends tapped 1/8 IP.
A185 Price $7.50 ea.
Polished brass pinup arm. 3" long. 1 3/4" depth. Ends tapped 1/8 IP.
N173 Price $3.50 ea.
Unfinished solid brass bent arm. Width 5 3/4" x 2 1/4" high.
Ends tapped 1/8 IP, 1/2" long.
A220 Price $7.50 ea.
Unfinished solid brass bent arm. Width 5" x 2 3/4" high.
Ends tapped 1/8 IP, 1/2" long.
A179 Price $7.50 ea.
Brass figurine arms. Threaded each end 1/2" and tapped 1/8 IP.
Allow a 3" bend for figurine. (ie: for a 9" figurine order a 12" pipe.)
06206 - 6" Solid Brass Price $6.00 ea. Limited supply
12040 - 8" Plated brass Price $5.50 ea.
57182 - 10" Plated brass Price $7.00 ea.
57184 - 12" Plated brass Price $14.00 ea.
A202 - 12" Solid brass Price $14.00 ea.
57186 - 14" Plated brass Price $9.00 ea.
12047 - 16" Plated brass Price $9.00 ea.
A214 - 16" Solid brass Price $15.00 ea.
57190 - 18" Plated brass Price $10.00 ea.
A215 - 18" Solid brass Price $17.00 ea.
A216 - 20" Solid brass Price $19.00 ea.
05222 - 22" Plated brass Price $12.00 ea. Limited supply
05224 - 24" Plated brass Price $13.00 ea. Limited supply

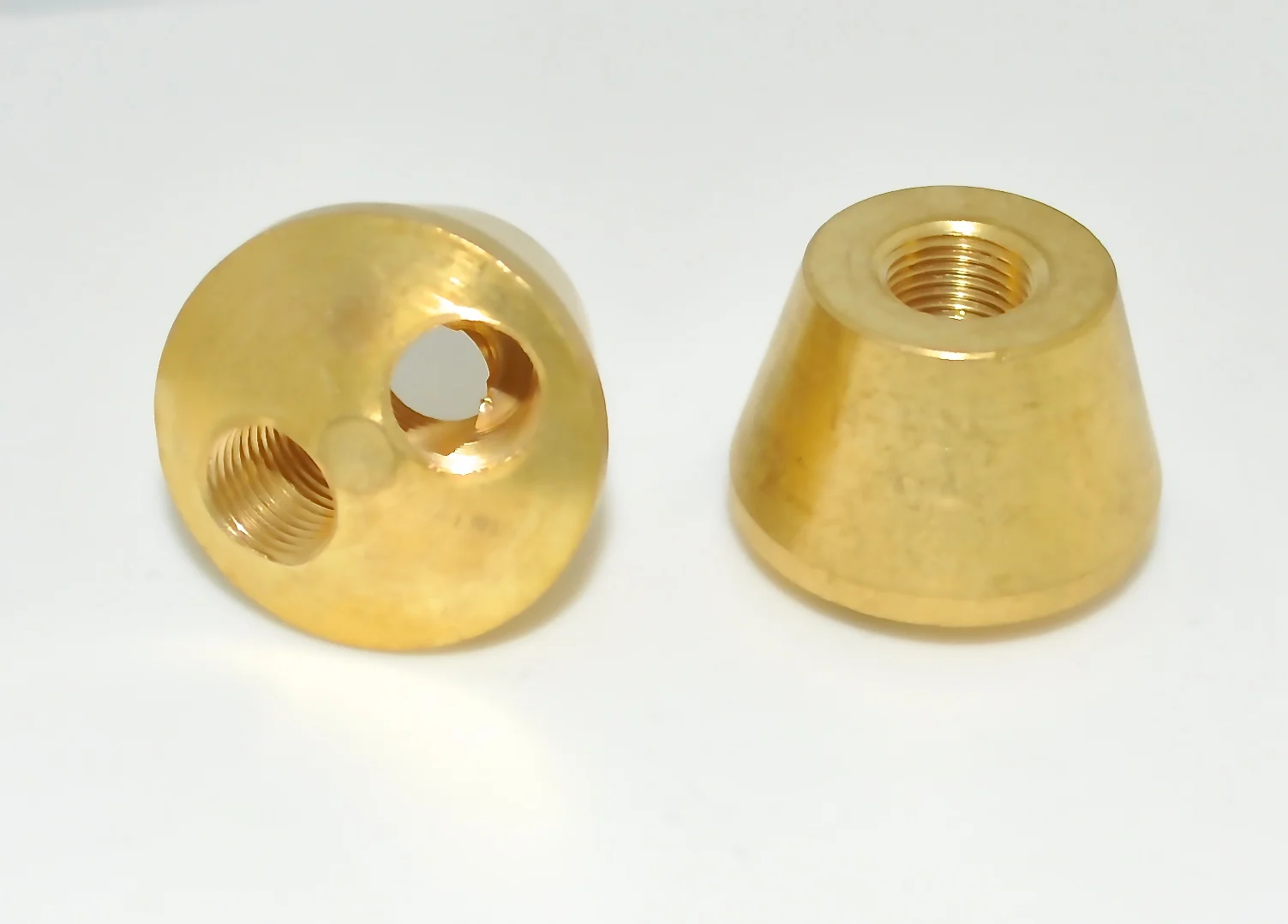

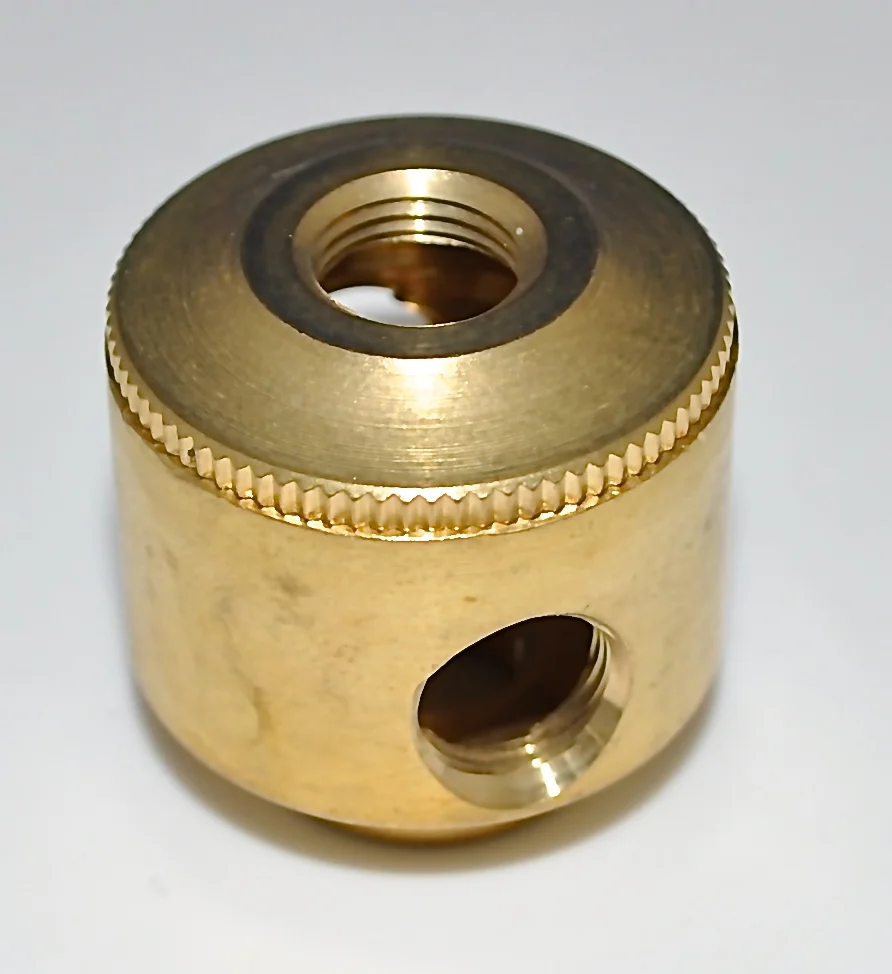

2 - piece small cluster body. Solid brass. Height 1 1/8". Diameter
1 1 /8". Side holes tapped 1/8 IP. Top and bottom holes tapped
1/8 IP.
A601 Price $10.25 ea.

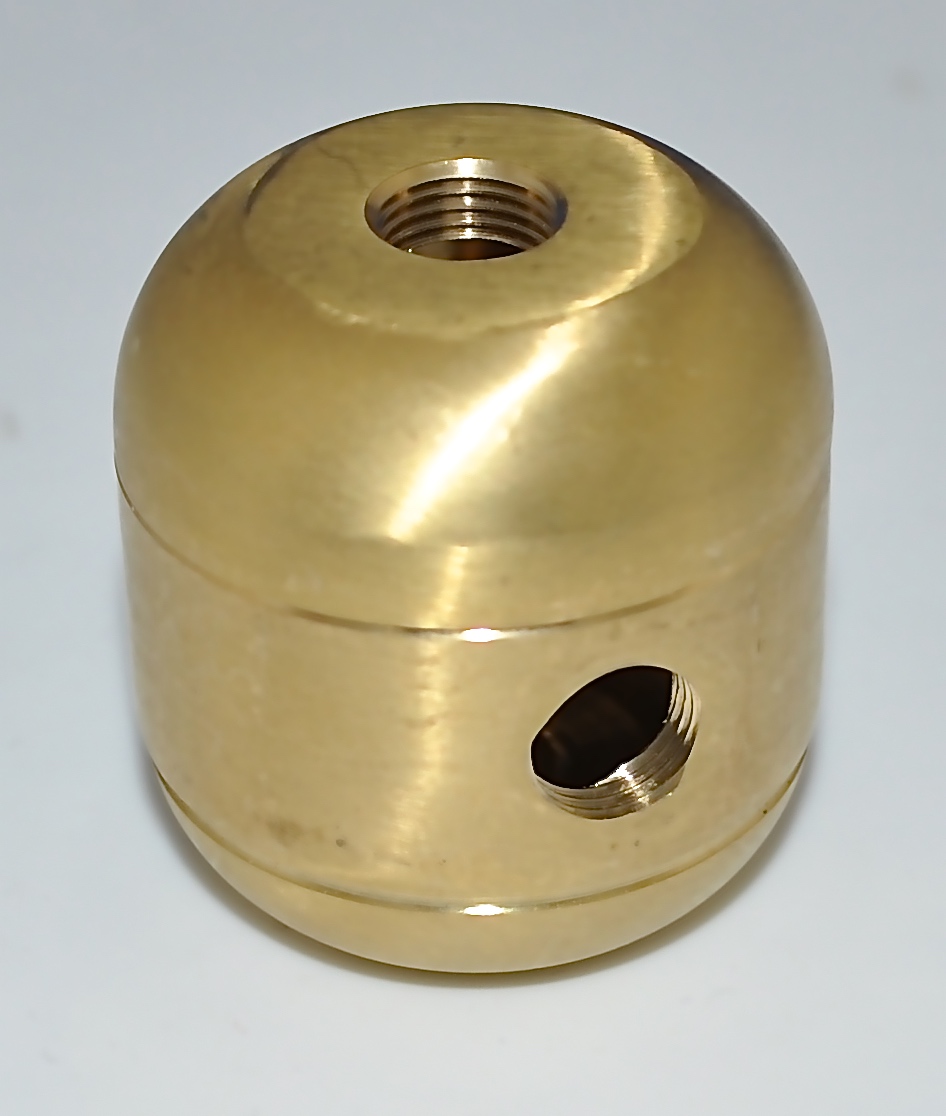

2 - piece cluster body. Solid brass. Height 1 9/16",
diameter 1 1/2". Side holes tapped 1/8 IP. Top and bottom holes tapped 1/8 IP.
A632 - Two side holes
Price $20.50 ea.
A633 - Three side holes
Price $20.50 ea.
A638 - Four side holes
Price $24.50 ea.
Unfinished brass cluster head with 1/8 M brass nipples for 2 lights. Comes with 1/4-27 turned brass finial stud and 1/8 F mount.
10458U Price $18.75 ea.
Arms are threaded 1/8 IP at both ends. Top cap has set screws and is tapped 1/8 IP. Bottom body is tapped 1/4 IP.
2" diameter, 7" spread.
A673 - Brass plated
A674 - Antique brass plated
Price $17.50 ea.
Unfinished solid brass. S-Type, 2-light cluster body. Arms and top cap are tapped 1/8 IP. Spread is 51/4".
10407U Price $17.50 ea.
6" blind pendant stem swinging loop. 3/4F on top for 3/4 slip canopies.. Brass plated. Tapped 3/8 IP.
16600 Price $13.00 ea. NO LONGER AVAILABLE
Unfinished brass shade holder and riser. 1/4-27 rod with 3/4" long thread and a 3/4" knurled nut on top for shade mounting, and a 1/8F slip coupling for cluster mounting. 6" overall length and is adjustable to about 4".
10417U Price $19.50 ea.

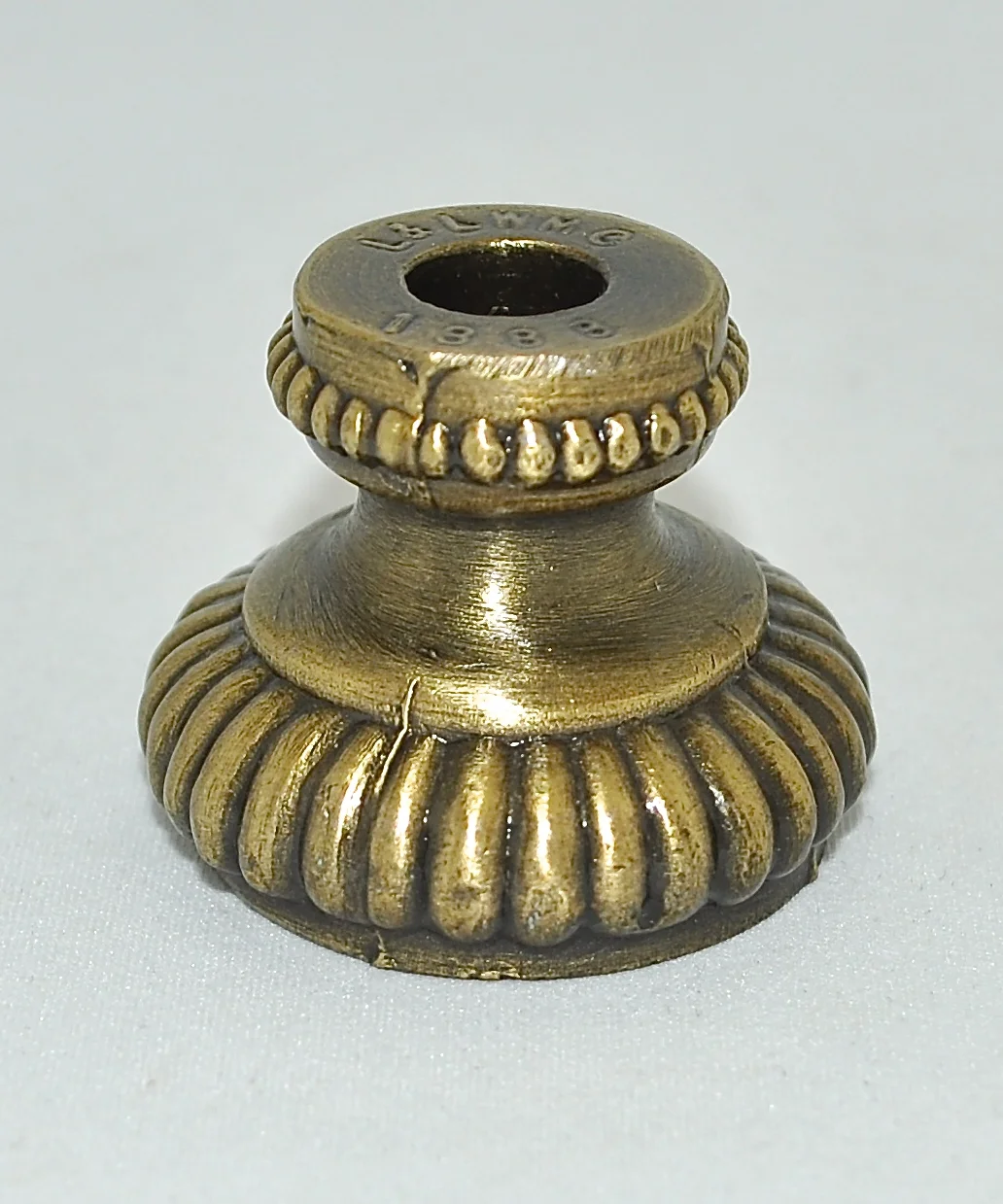

Antique brass finish metal break. 3" high, 3 3/8" diameter at widest point. Slips 1/4 IP.
22169 Price $35.00 ea. NO LONGER AVAILABLE
Antique brass finish cast metal break. 1 1/2" high, 2 3/4" diameter. Slips 1/4 IP.
22152 Price $38.00 ea.
Antique brass finish cast metal break. 3" high, 1 1/4" diameter top and bottom. Slips 1/4 IP.
22165 Price $24.00 ea. NO LONGER AVAILABLE
Antique brass finish cast metal break. 2 1/8" high, 2 1/2" diameter. Slips 1/8 IP.
22140 Price $38.00 ea. NO LONGER AVAILABLE
Antique brass finish cast metal break. 3 1/2" high, 2 3/8" diameter. Slips 1/4 IP.
22145 Price $38.00 ea.
Cast metal break, antique satin brass finish. 1 1/4" Height,
1 1/2" Bottom. Slips 1/8 IP.
22150 Price $28.00 ea.
Cast metal break with antique finish. 3 1/3" Height, 1 1/4" top and bottom.
22162 Price $36.00 ea. NO LONGER AVAILABLE
Safety glass for mini-can lamps. Diameter 30 mm (1.18") and height 65 mm (2.56").
E6400 Price $12.00 ea.
For halogen lamps that use T3 bulbs. Clips on socket or reflector. Clear.
E3025 - 123 mm
Price $9.95 ea.
E3024 - 90 mm
Price $8.95 ea.
1 lb. cast iron weight. 3 1/2" diameter, 1/2" height. Slips 1/4 IP.
23904 Price $10.95 ea.
Slips 1/4 IP.
50506 - 2 lb. 4" diameter, 3/4" high
Price $26.00 ea.
R303 - 3 lb. 5"diameter, 1" high
Price $26.00 ea.
8 lb. cast iron weight. 95/8" diameter, 1" overall height with feet. Tapped 1/4 IP.
R306 Price $67.00 ea.
Malleable iron chain pliers. Easily opens and closes virtually all chain.
X25 Price $28.50 ea.
Metal polish for brass, silver, copper, bronze, gold and tin. Does not contain harmful acids. Leaves a protective film.
C460 Price $28.50 ea.
Unfinished, yellow zinc plated steel nipple. Fully threaded 1/8IP.
1/8 x .38 - 3/8" Price $0.35 ea.
1/8 x .50 - 1/2" Price $0.35 ea.
1/8 x .75 - 3/4" Price $0.35 ea.
1/8 x 1.00 - 1" Price $0.45 ea.
1/8 x 1.25 - 1 1/4" Price $0.45 ea.
1/8 x 1.50 - 1 1/2" Price $0.55 ea.
1/8 x 1.75 - 1 3/4" Price $0.60 ea.
1/8 x 2.00 - 2" Price $0.65 ea.
1/8 x 2.25 - 2 1/4" Price $0.65 ea.
1/8 x 2.50 - 2 1/2" Price $0.65 ea.
1/8 x 2.75 - 2 3/4" Price $0.75 ea.
1/8 x 3.00 - 3" Price $0.75 ea.
1/8 x 3.25 - 3 1/4" Price $0.75 ea.
1/8 x 3.50 - 3 1/2" Price $0.75 ea.
1/8 x 3.75 - 3 3/4" Price $0.85 ea.
1/8 x 4.00 - 4" Price $0.85 ea.
1/8 x 4.50 - 4 1/2" Price $0.90 ea.
1/8 x 5.00 - 5" Price $1.50 ea.
1/8 x 6.00 - 6" Price $1.75 ea
A99 - 10" Price $2.75 ea.
A303 - 36" Price $6.50 ea.
